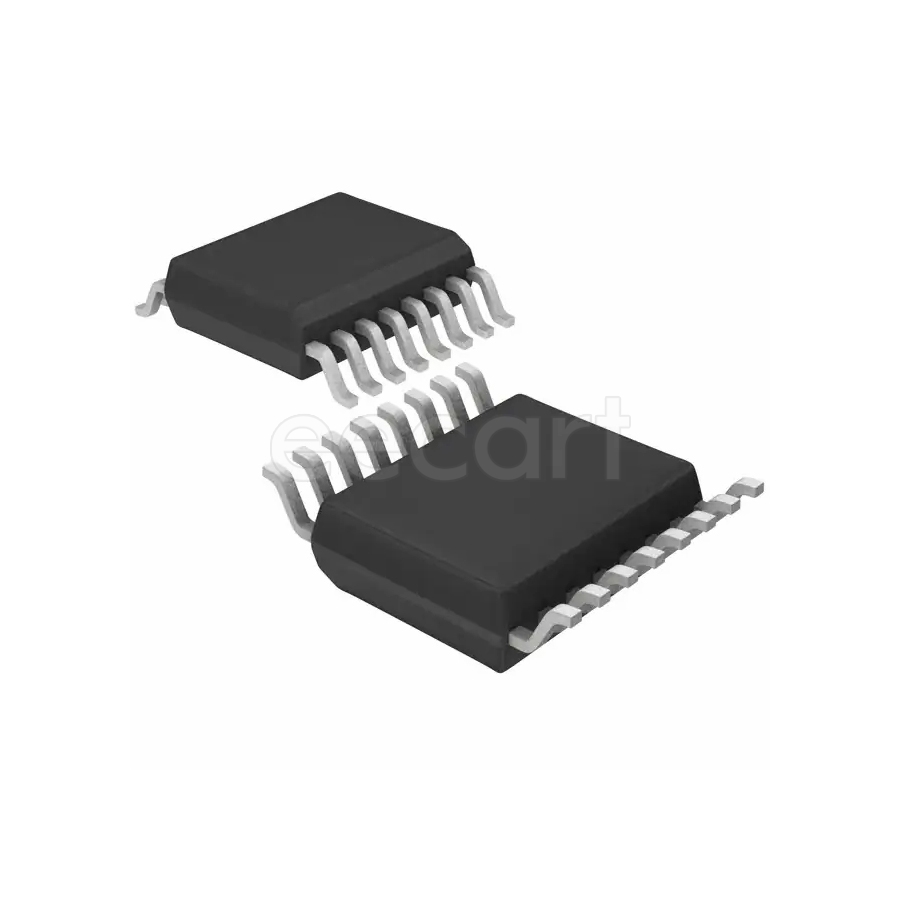

MAX6951CEE+
Manufacturer:
Analog Devices / Maxim Integrated
Mfr.Part #:
MAX6951CEE+
Datasheet:
Description:
QSOP-16 SMD/SMT Display Drivers LED 7 Segment Serial
| Parameter | Value |
|---|---|
| Length | 4.98 mm |
| Width | 3.99 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 16 |
| Height | 1.55 mm |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Interface | Serial |
| Min Input Voltage | 2.7 V |
| Output Current | 400 mA |
| Operating Supply Voltage | 5.5 V |
| Lifecycle Status | Production (Last Updated: 1 month ago) |
| Max Power Dissipation | 667 mW |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 2.7 V |
| Operating Supply Current | 10 mA |
| Max Supply Current | 15 mA |
| High Level Output Current | -50 mA |
| Low Level Output Current | 400 mA |
| Switching Frequency | 8 MHz |
| Max Input Voltage | 5.5 V |
| Number of Outputs | 8 |
| Display Type | LED |
| Number of Segments | 64 |
| Configuration | 7 Segment |
Stock: 411
Distributors
pcbx
pcbxUnit Price$10.17896
Ext.Price$10.17896
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $10.17896 | $10.17896 |
| 10 | $8.06895 | $80.68950 |
| 25 | $7.54230 | $188.55750 |
| 50 | $7.24692 | $362.34600 |
| 100 | $6.96313 | $696.31300 |
| 300 | $6.64012 | $1992.03600 |
| 500 | $6.52070 | $3260.35000 |
